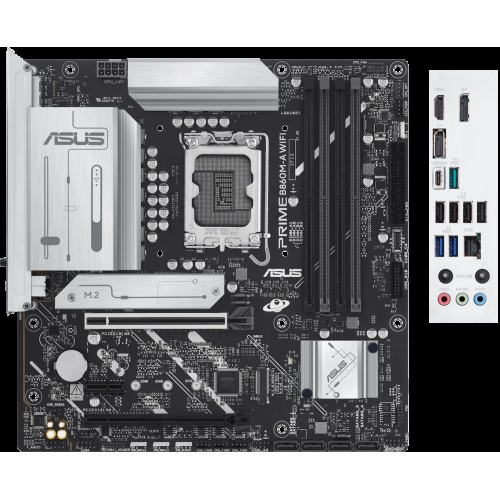

The Asus PRIME B860M-A WIFI is a micro-ATX motherboard designed for home and office use. It features an Intel LGA 1851 socket, supports up to 256GB of DDR5 RAM, and includes integrated Wi-Fi for modern connectivity.
| General | |
| Features | for home/office |
| Form Factor | micro-ATX |
| Max. Memory | 256 GB |
| Power Phases | 10 / 7+1+1+1 / |
| Size (HxW) | 244x244 mm |
| Socket | Intel LGA 1851 |
| Socket Type | Intel LGA 1851 |
| VRM Heatsink | Yes |
| Memory | |
| DDR5 | 4 slot(s) |
| Max. Clock Frequency | 8666 MHz |
| Max. Memory | 256 GB |
| Memory Module | DIMM |
| Operation Mode | 2 channel |
| XMP | Yes |
| Other | |
| ARGB LED Strip | 3 |
| PCI Express | 5.0 |
| PCI Modes | 16x/4x |
| PCI-E 16x Slots | 2 |
| PCI-E Slots | 1 |
| RGB LED Strip | 1 |
| Steel PCI-E Connectors | Yes |
| TPM Connector | Yes |
| USB A 2.0 | 1 pcs |
| USB A 5Gbps | 1 pcs |
| USB C 10Gbps | 1 psc |
| USB4 40 Gbps | 1 pcs / Thunderbolt / |
| Processor | |
| BIOS | Ami |
| Chipset | Intel B860 |
| UEFI BIOS | Yes |
| Storage | |
| Integrated RAID Controller | Yes |
| M.2 | 2xPCI-E 4x |
| M.2 Connector | 2 |
| M.2 SSD Cooling | Yes |
| M.2 Version | 1x5.0, 1x4.0 |
| SATA 3 (6Gbps) | 4 |
Asus PRIME B860M-A WIFI 90MB1JY0-M0EAY0
- Brand: Asus
- Product Code: Asus PRIME B860M-A WIFI 90MB1JY0-M0EAY0
- Availability: In Stock
-
$189.24
