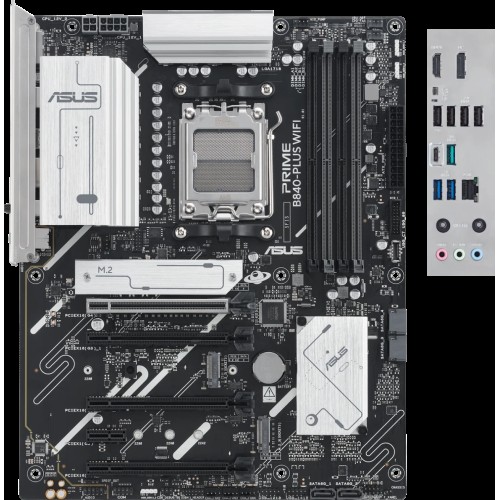

The Asus PRIME B840-PLUS WIFI is an ATX motherboard designed for home and office use. It features an AMD AM5 socket, supports up to 192GB of DDR5 RAM, and includes integrated Wi-Fi for enhanced connectivity.
| General | |
| Features | for home/office |
| Form Factor | ATX |
| Max. Memory | 192 GB |
| Power Phases | 11 / 8+2+1 / |
| Size (HxW) | 305x244 mm |
| Socket | AMD AM5 |
| Socket Type | AMD AM5 |
| VRM Heatsink | Yes |
| Memory | |
| DDR5 | 4 slot(s) |
| EXPO Support | Yes |
| Max. Clock Frequency | 7600 MHz |
| Max. Memory | 192 GB |
| Memory Module | DIMM |
| Operation Mode | 2 channel |
| Other | |
| ARGB LED Strip | 3 |
| PCI Express | 4.0 |
| PCI-E 16x Slots | 4 |
| PCI-E Slots | 1 |
| Steel PCI-E Connectors | Yes |
| TPM Connector | Yes |
| USB A 2.0 | 2 pcs |
| USB A 5Gbps | 1 pcs |
| USB C 5Gbps | 1 pcs |
| USB4 40 Gbps | 1 pcs / Thunderbolt / |
| Processor | |
| BIOS | Ami |
| Chipset | AMD B840 |
| UEFI BIOS | Yes |
| Storage | |
| Integrated RAID Controller | Yes |
| M.2 | 3xPCI-E 4x |
| M.2 Connector | 3 |
| M.2 SSD Cooling | Yes |
| M.2 Version | 2x4.0, 1x3.0 |
| SATA 3 (6Gbps) | 4 |
Asus PRIME B840-PLUS WIFI 90MB1IZ0-M0EAY0
- Brand: Asus
- Product Code: Asus PRIME B840-PLUS WIFI 90MB1IZ0-M0EAY0
- Availability: In Stock
-
$154.31
