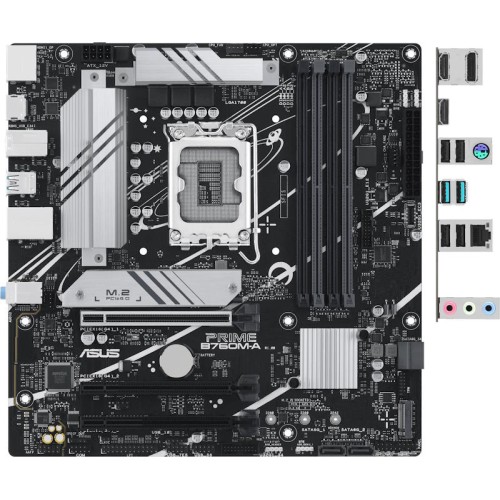

The Asus PRIME B760M-A-CSM is a micro-ATX motherboard designed for home and office use. It features an Intel LGA 1700 socket, supports up to 192GB of DDR5 RAM, and includes advanced features for efficient system performance.
| General | |
| Features | for home/office |
| Form Factor | micro-ATX |
| Max. Memory | 192 GB |
| Size (HxW) | 244x244 mm |
| Socket | Intel LGA 1700 |
| Socket Type | Intel LGA 1700 |
| VRM Heatsink | Yes |
| Memory | |
| DDR5 | 4 slot(s) |
| Max. Clock Frequency | 7200 MHz |
| Max. Memory | 192 GB |
| Memory Module | DIMM |
| Operation Mode | 2 channel |
| XMP | Yes |
| Other | |
| ARGB LED Strip | 3 |
| PCI Express | 4.0 |
| PCI Modes | 16x/4x/1x |
| PCI-E 16x Slots | 3 |
| RGB LED Strip | 1 |
| Steel PCI-E Connectors | Yes |
| TPM Connector | Yes |
| USB A 2.0 | 2 pcs |
| USB A 5Gbps | 2 pcs |
| USB C 5Gbps | 1 pcs |
| Processor | |
| BIOS | Ami |
| Chipset | Intel B760 |
| UEFI BIOS | Yes |
| Storage | |
| Integrated RAID Controller | Yes |
| M.2 | 2xPCI-E 4x |
| M.2 Connector | 2 |
| M.2 SSD Cooling | Yes |
| SATA 3 (6Gbps) | 4 |
Asus PRIME B760M-A-CSM 90MB1EK0-M1EAYC
- Brand: Asus
- Product Code: Asus PRIME B760M-A-CSM 90MB1EK0-M1EAYC
- Availability: In Stock
-
$129.05
