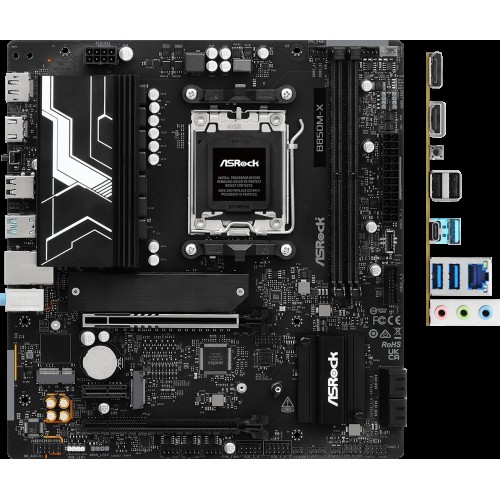

The ASRock B850M-X R2.0 is a micro-ATX motherboard with an AMD AM5 socket, supporting up to 128 GB of DDR5 memory at 8200 MHz. It features dual M.2 slots, 4 SATA ports, and integrated RAID support, making it suitable for home and office use with reliable performance.
| General | |
| Features | for home/office |
| Form Factor | micro-ATX |
| Performance Tier | Mid-Range |
| Power Phases | 8 / 6+1+1 / |
| Size (HxW) | 244x226 mm |
| Size Class | Medium |
| Socket | AMD AM5 |
| VRM Heatsink | Yes |
| Memory | |
| DDR5 | 2 slot(s) |
| EXPO Support | Yes |
| Max. Clock Frequency | 8200 MHz |
| Max. Memory | 128 GB |
| Memory Module | DIMM |
| Operation Mode | 2 channel |
| XMP | Yes |
| Other | |
| PCI Express | 5.0 |
| PCI Modes | 16x/4x |
| PCI-E 16x Slots | 2 |
| PCI-E Slots | 1 |
| Steel PCI-E Connectors | Yes |
| Processor | |
| BIOS | Ami |
| Chipset | AMD B850 |
| UEFI BIOS | Yes |
| Storage | |
| Integrated RAID Controller | Yes |
| M.2 | 2xPCI-E 4x |
| M.2 Connector | 2 |
| M.2 SSD Cooling | Yes |
| M.2 Version | 1x5.0, 1x4.0 |
| SATA 3 (6Gbps) | 4 |
