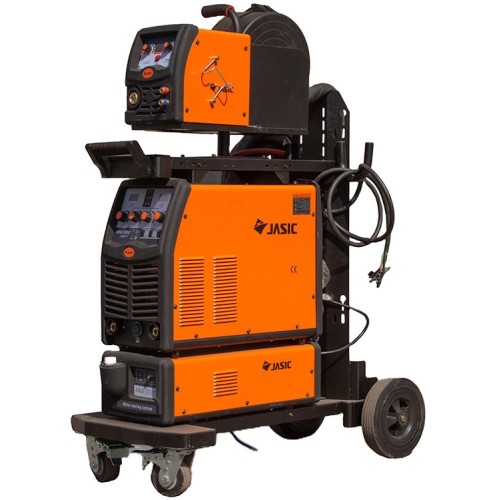

The Jasic MIG 500 is a robust semi-automatic inverter welder with a maximum welding current of 500 A. It supports MMA and MIG/MAG welding, featuring a digital display and liquid cooling support. Weighing 57 kg, it's built for heavy-duty applications and professional use.
| General | |
| Coil Location | external |
| Detachable Welding Cable (MIG/MAG) | removable |
| Dimensions (HxWxD) | 670x336x625 mm |
| Duty Cycle | 60 % |
| Input Voltage | 400 V |
| Insulation Class | F |
| Mass Cable | 3 m |
| Max. Welding Current | 500 A |
| Max. Welding Current (Duty Cycle 100%) | 387 A |
| Max. Wire Diameter | 1.6 mm |
| Min. Welding Current | 20 A |
| Minimum Wire Diameter | 0.8 mm |
| More Features | 2/4 stroke mode, digital display, liquid cooling support, transportation wheels |
| Open Circuit Voltage | 75 V |
| Power Consumption | 24.7 kVA |
| Protection Class IP | 21 |
| Torch Cable | 3 m |
| Type | semi-automatic inverter |
| Weight | 57 kg |
| Welding Current | DC |
| Welding Type | MMA, MIG/MAG |
| Wire Feed Speed | 18 m/min |
Jasic MIG 500 (N221) MIG.N221
- Brand: Jasic
- Product Code: Jasic MIG 500 (N221) MIG.N221
- Availability: In Stock
-
$2 662.04
