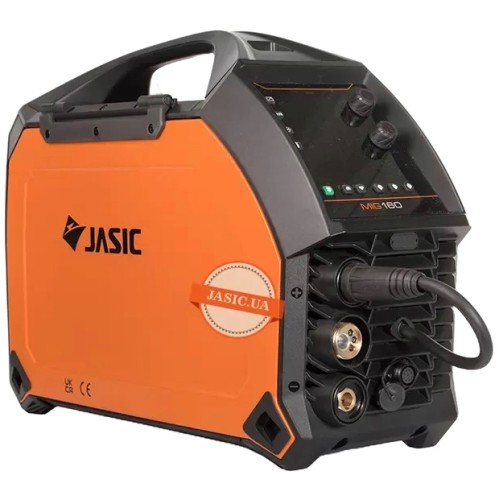

The Jasic MIG-160 EVO20 is a semi-automatic inverter welder suitable for MMA, MIG/MAG, and TIG welding. It has a maximum welding current of 160 A and features a digital display for precise control. Weighing 14.5 kg, it's designed for both professionals and DIY enthusiasts.
| General | |
| Coil Location | internal |
| Detachable Welding Cable (MIG/MAG) | removable |
| Dimensions (HxWxD) | 415x220x565 mm |
| Duty Cycle | 30 % |
| Input Voltage | 230 V |
| Insulation Class | H |
| Mass Cable | 3 m |
| Max. Welding Current | 160 A |
| Max. Welding Current (Duty Cycle 100%) | 88 A |
| Max. Wire Diameter | 1 mm |
| Min. Welding Current | 30 A |
| Minimum Wire Diameter | 0.6 mm |
| More Features | Hot Start with adjustment, Arc Force with adjustment, VRD, digital display |
| Open Circuit Voltage | 60 V |
| Power Consumption | 7.28 kVA |
| Protection Class IP | 23 |
| Type | semi-automatic inverter |
| Weight | 14.5 kg |
| Welding Current | DC |
| Welding Type | MMA, MIG/MAG, TIG |
| Wire Feed Speed | 14 m/min |
Jasic MIG-160 (N2S12) EVO20
- Brand: Jasic
- Product Code: Jasic MIG-160 (N2S12) EVO20
- Availability: In Stock
-
$923.61
