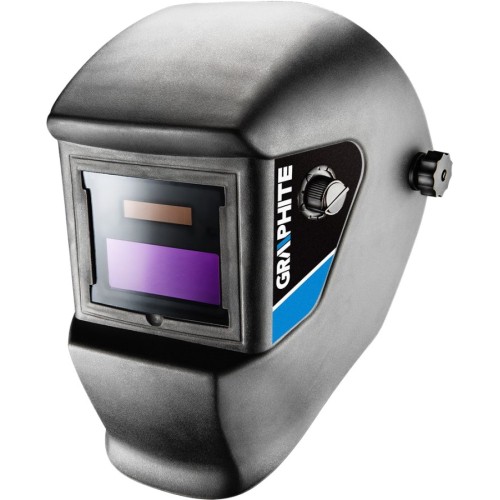

The Graphite 56H822 chameleon welding helmet features adjustable light filtering levels from 9 to 13 DIN and a quick turn-on time of 66.7 ms. Weighing 480 g, it provides excellent UV/IR protection, making it essential for welders seeking safety and comfort.
| General | |
| Color Rendering | standard (shades of green) |
| Darkening Adjustment | external mechanical |
| Delay Time Adjustment | internal mechanical |
| Design Features | internal and external controls |
| Filter Cartridge Dimensions (WxH) | 110x90x9 mm |
| Filter Cartridge Thickness | 9 mm |
| Filter Viewing Area (WxH) | 90x35 mm |
| Helmet Weight | 480 g |
| Light Filtering Levels | 4 DIN |
| Max. Degree Of Darkening | 13 DIN |
| Min. Degree Of Darkening | 9 DIN |
| Operating Temperature | -5 – 55 °C |
| Optical Sensors | 2 |
| Protection From UV/IR | 16 DIN |
| Sensitivity Adjustment | internal mechanical |
| Turn-On Time | 66.7 ms |
| Type | chameleon helmet |
| Weight Class | Light |
