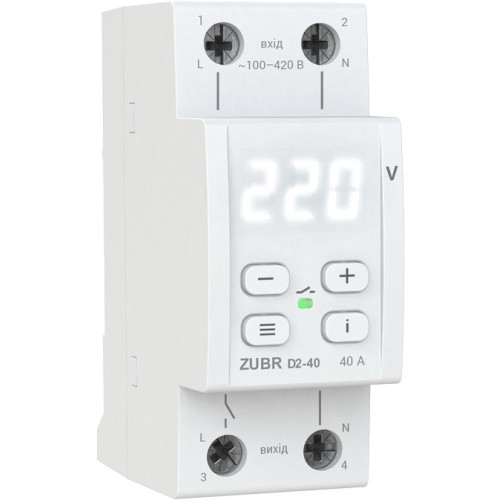

The Zubr D2-40 is a single-phase voltage monitoring relay rated at 8.8 kVA. It monitors voltages from 100 to 420 V and features a fast cut-off time of 0.04 seconds. Ideal for industrial applications, it includes thermal protection and a digital adjustment interface.
| General | |
| Adjustment | digital |
| Cut-Off Time (Lower Limit) | 0.04 sec |
| Device | voltage Monitoring Relays |
| Dimensions | 66x85x36 mm |
| Functions | display, operation indicator, thermal protection, fault memory |
| Lower Cut-Off Limit | 120 – 210 V |
| Maximum Current | 50 A |
| Mount | dIN rail |
| Mount Type | DIN Rail |
| Number Of Phases | 1 |
| Off Time | 0.04 sec |
| Power | 8.8 kVA |
| Protection Level | IP20 |
| Rated Current | 40 A |
| Reclosing Delay | 3 – 600 sec |
| Upper Cut-Off Limit | 220 – 280 V |
| Voltage | variable |
| Voltage Measuring Range | 100 – 420 V |
| Weight | 170 g |
| Width (Unit) | 2 U |
