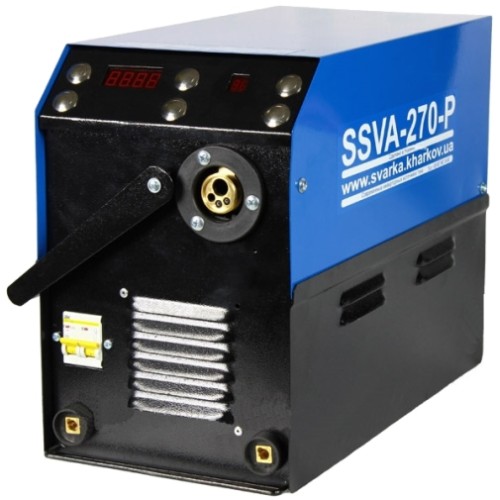

The SSVA 270-P-380 is a semi-automatic inverter welder capable of MMA, MIG/MAG, and TIG welding. It supports a maximum welding current of 270 A and features a digital display, making it suitable for various welding tasks.
| General | |
| Coil Location | internal |
| Detachable Welding Cable (MIG/MAG) | removable |
| Dimensions (HxWxD) | 480x360x270 mm |
| Duty Cycle | 60 % |
| Input Voltage | 400 V |
| Insulation Class | F |
| Max. Electrode Size | 5 mm |
| Max. Welding Current | 270 A |
| Max. Welding Current (Duty Cycle 100%) | 160 A |
| Max. Wire Diameter | 1.2 mm |
| Min. Welding Current | 5 A |
| Minimum Wire Diameter | 0.6 mm |
| More Features | Hot Start, Anti-Stick, digital display, car engine start |
| Power Consumption | 16 kW |
| Protection Class IP | 21 |
| Type | semi-automatic inverter |
| Weight | 19.4 kg |
| Welding Current | DC |
| Welding Type | MMA, MIG/MAG, TIG |
| Wire Feed Speed | 15 m/min |
